RF recorder RFeye SenS Portable

Take desktop-quality RF I/Q recording outside the lab
SenS-Portable-Header

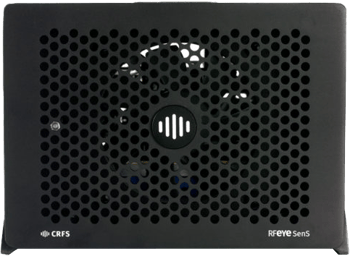

sens-p-front-head-on-600x598

RFeye SenS Portable overview

This is a lightweight, portable I/Q recorder for high-fidelity, long-duration RF recording, and signal extraction. With its small size and built-in storage of up to 25.6 TB, it records up to 12+ hours of RF signals, allowing you to capture hours of lab-quality signal data without the bulky lab equipment.

The RFeye SenS Portable takes the long-duration, high-fidelity RF signal recording you might expect from a desktop recording system, and delivers it in a lightweight, portable form factor. Where other portable RF recorders cut corners in terms of signal fidelity, the SenS Portable combines small size and low weight with a highly sensitive RFeye receiver. This makes it ideal for capturing live, real-world signals in their native environment – without sacrificing RF recording quality.

Top arrow
Bottom arrow

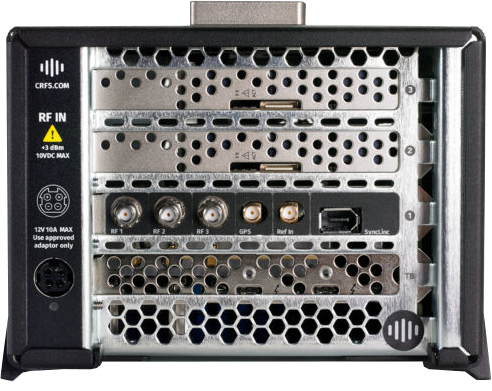

sens-p-back-head-on-600x590

With tremendous resolution and ultra-low noise, the SenS Portable empowers you to capture the most complex RF signals, including intermittent, low-power signals, even signals with a short pulse duration that hide next to other transmission sources.

The SenS Portable uses built-in, enterprise-class SSDs to provide up to 25.6 TB of storage for RF signal recording using CRFS’s RFeye DeepView software. This capability enables you to record vital RF signals for hours or even days in order to capture highly sporadic but critical signals. It can be used to capture pattern-of-life information for evidentiary analysis, to generate libraries of high-value signals for manufacturing test and measurement (T&M), or even to record native environments for pre-mission operational planning.

Icon

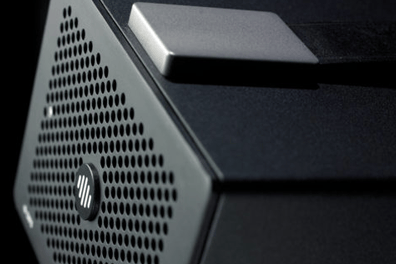

SenS-portable-close
  • BroadUp to 40 GHz – detection range of 9 kHz to 8 GHz, 18 GHz or 40 GHz allows you to capture diverse signals
  • High resolution – Hz resolution provides the highest signal quality for analysis and post-processing
  • Full-rate I/Q – 4-lane Thunderbolt 3 port allows gapless, 16-bit streaming at up to 100 MHz IBW

RFeye SenS Portable at a glance

Intelligent RF sensor

Intelligent RF sensor

RF recording (I/Q capture)

RF recording (I/Q capture)

superheterodyne icon wht

The latest superheterodyne
RF technology

Group 2159

100 MHz IBW wideband frequency monitoring

Networked for multiple

Networked for multiple
users & missions

Superior RF performance

Superior RF performance

100 MHz IBW wideband

Advanced signal intercept

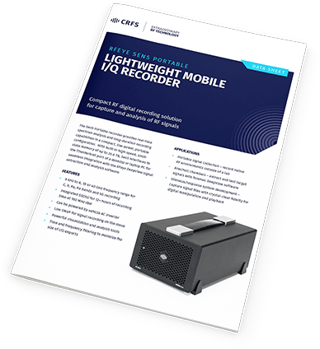

Sens-portable-datasheet

DATA SHEET

RFeye SenS Portable

The SenS Portable recorder provides real-time spectrum analysis and long-duration recording capabilities in a compact, low-power, portable configuration.  With built-in high-speed, solid-state memory of up to 25.6 TB, SenS interfaces to the Thunderbolt port of a desktop or laptop PC for seamless integration with the RFeye DeepView signal extraction and analysis software.

LONG DURATION, WIDEBAND I/Q DATA RECORDING
DEPLOYMENT STORIES
LONG DURATION, WIDEBAND I/Q DATA RECORDING

How a renowned R&D company recorded I/Q data in the field without bulky lab equipment.

Read the story

Discover hardware

CRFS offers a combination of fixed, tactical, and mobile hardware solutions, which can be used as versatile, re-deployable systems that do not require recalibration.

1/1
1/1
1/1
RFeye Node 100-8
RFeye Node 100-8

Wideband RF receiver to ensure you never miss a signal. The RFeye Node 100-8 is a complete spectrum monitoring and geolocation system designed for remote deployment in distributed networks, including in hostile environments.

RFeye Node 100-40
RFeye Node 100-40

RF receiver with a 100MHz instantaneous bandwidth. Packaged in a lightweight weatherproof rugged form, the Node 100-40 delivers 24/7 365 spectrum vigilance for long-term deployment in harsh environments.

RFeye Node 100-18
RFeye Node 100-18

The wideband RFeye Node 100-18 is a complete spectrum monitoring and geolocation system. Optimized for size, weight, and power (SWaP), it is simple to connect, power, and network.

RFeye SenS Remote
RFeye SenS Remote

The SenS Portable combines small size and low weight with a highly sensitive RFeye receiver for high-fidelity, long-duration RF recording and signal extraction.

Discover software

A comprehensive software suite to monitor, capture, analyze, geolocate, and report signals of interest.

1/1
1/1
1/1
RFeye Site
RFeye Site

RFeye Site is a toolbox to monitor the spectrum in real-time and geolocate signals in complex RF environments.

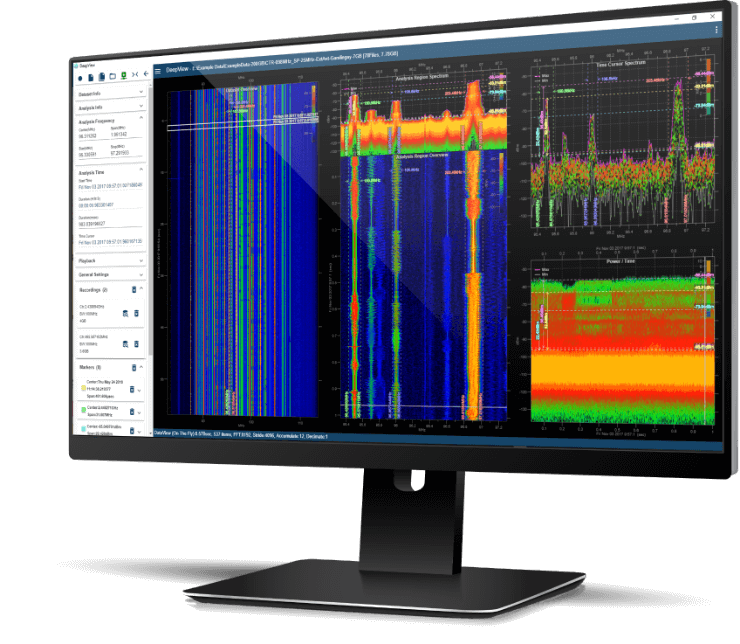

RFeye DeepView
