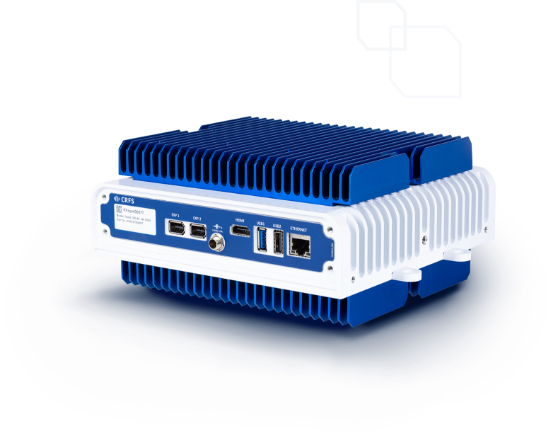

RFeye Node 100-40 overview
The RFeye 100-40 is a high-performance RF sensor with a 9 kHz – 40 GHz frequency range and a 100 MHz instantaneous bandwidth. The RFeye Node 100-40 enables operators to monitor higher frequencies with advanced signal intercept by incorporating the latest superheterodyne receiver technology.
This fourth-generation RF sensor has in-built edge processing, reducing backhaul data bandwidth. Excellent phase noise, low noise figure, and superb spurious free dynamic range, coupled with FPGA technology, enables easy integration and exploitation of the SDR and computer platform.
- Real-time continuous spectrum operations
- Finds low-power signals
- Detects signals that have a low probability of intercept
- Compatible with GPS, BeiDou, GALILEO, and GLONASS
- Gateway to powerful software and APIs
- Flexible deployment – rugged indoor or outdoor RF sensors for fixed, temporary, or mobile platforms
RFeye Node 100-40 at a glance
Intelligent RF sensor
Networked for multiple
users & missions
Superior RF performance
Small, light, fast
Advanced signal intercept
100 MHz IBW wideband frequency monitoring
RF recording (I/Q capture)
Ruggedized protection
from water or dust
%20CTA%20cover.png)
Brochure
RFeye Node Overview
Discover our advanced superheterodyne RF technology for superior sensitivity, frequency stability, and selectivity. Compare Node specifications, view the new RFeye Node models, and discover what makes them unique.
IP67 rated
All RFeye Nodes are designed for outdoor deployment in extreme environments and operate between -30oC – +550C. The MIL-spec I/O connectors, weatherproof RF connectors and sealing gaskets provide IP67-rated protection.
CRFS expertise
Principles of
geolocation
techniques
This white paper describes the underlying principles of geolocation techniques (AoA, TDoA, FDoA, & PoA) and outlines their applications. Read the white paper
Passive geolocation
with 3D TDoA
Learn about the passive technique known as Time Difference of Arrival (TDoA), which uses the time difference between receipt of signals at spatially separated receivers to determine the location of the source.
Advanced geolocation capabilities
Learn about advanced geolocation capabilities, AoA, TDoA, PoA, multi geolocation, and much more.
