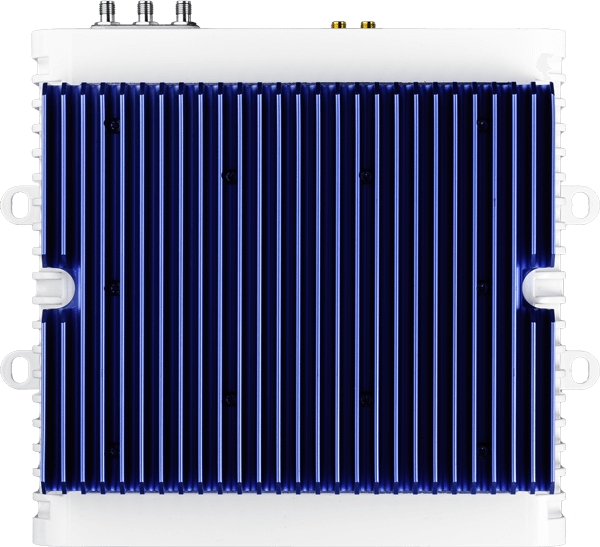

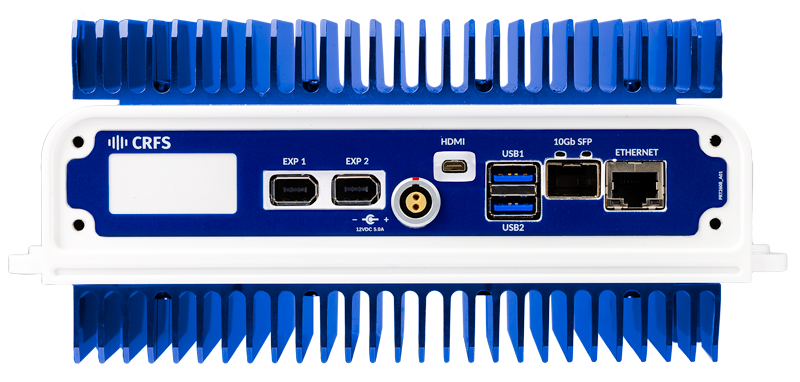

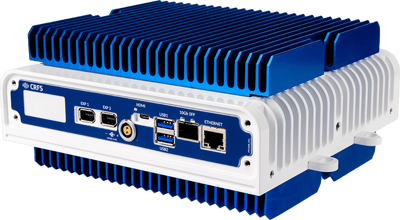

RFeye Node Plus 100-18 overview
The RFeye Node Plus 100-18 is a high-performance spectrum analyzer and monitoring receiver designed for fast, long-distance data transfer via a 10 Gigabit Ethernet SFP+ port, supporting both fiber optic and copper connections. It covers a tuning range of 9 kHz to 18 GHz and features edge processing for full 100 MHz instantaneous bandwidth (IBW) recording, capture, and streaming. With a 120 dB dynamic range, 390 GHz/s sweep speed at 2 MHz RBW, and best-in-class frequency accuracy, tuning time, and phase noise performance, the sensor delivers exceptional RF sensing capabilities.
The RFeye Node Plus 100-18 supports full 100 MHz RF recording (I/Q capture), allowing operators to analyze wider bandwidth signals. With enhanced processing power and memory, it manages and streams I/Q data at 550 MB/s (4 Gbps), making it ideal for advanced signal detection and high probability of intercept (POI) in EMSO, SIGINT, COMINT, DF, and EW missions. As an excellent handoff receiver in a networked system, it excels in spectrum monitoring, direction finding, and geolocation.

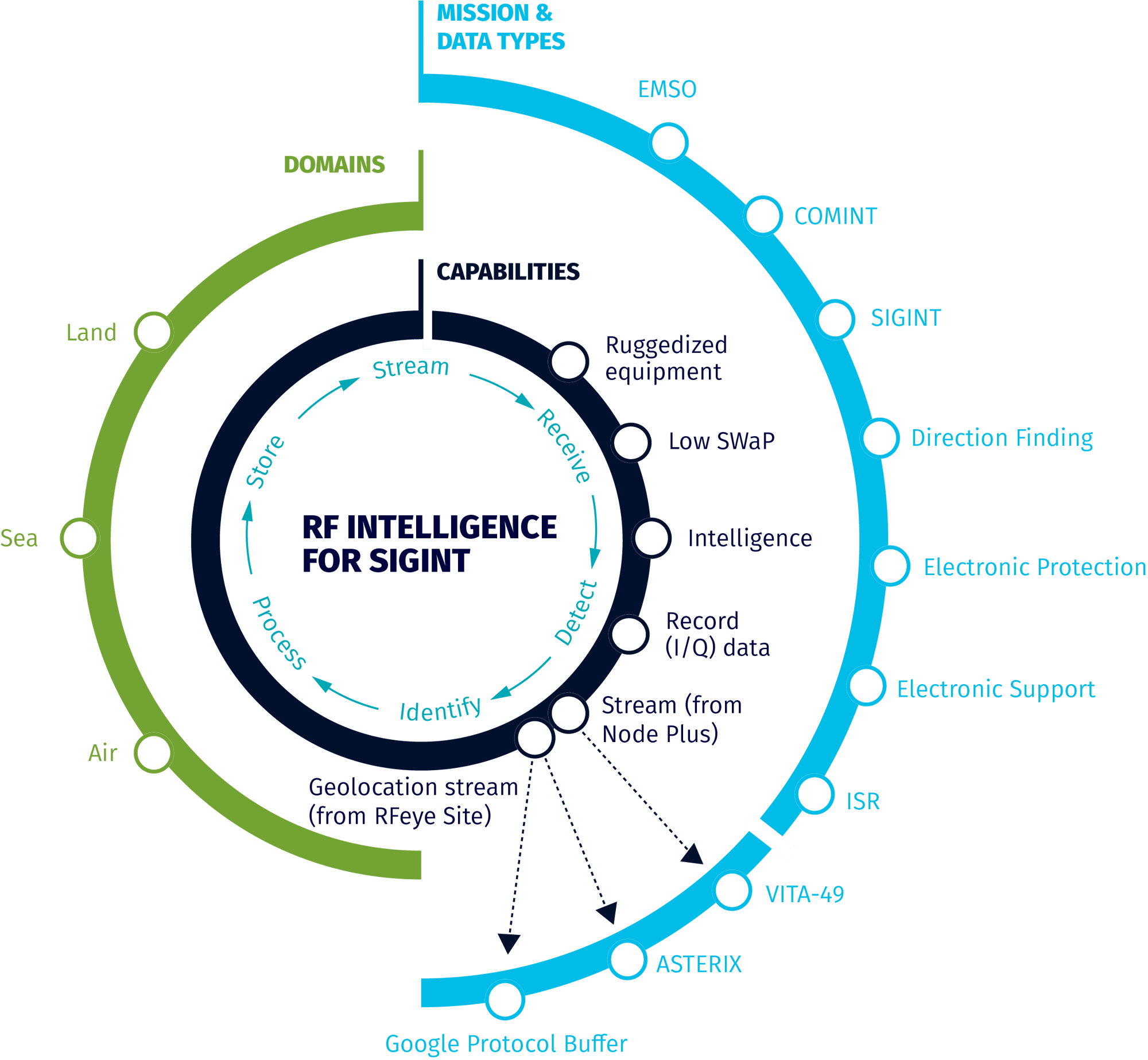

RFeye Node Plus 100-18 ecosystem

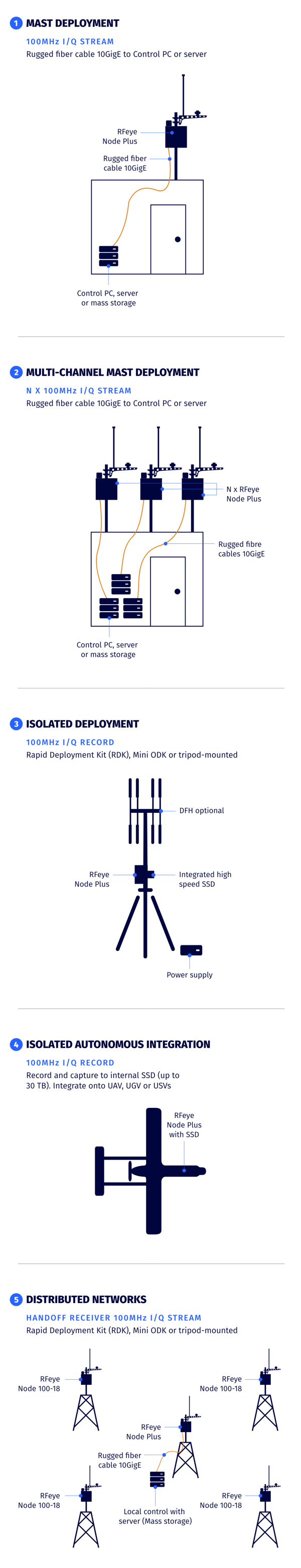

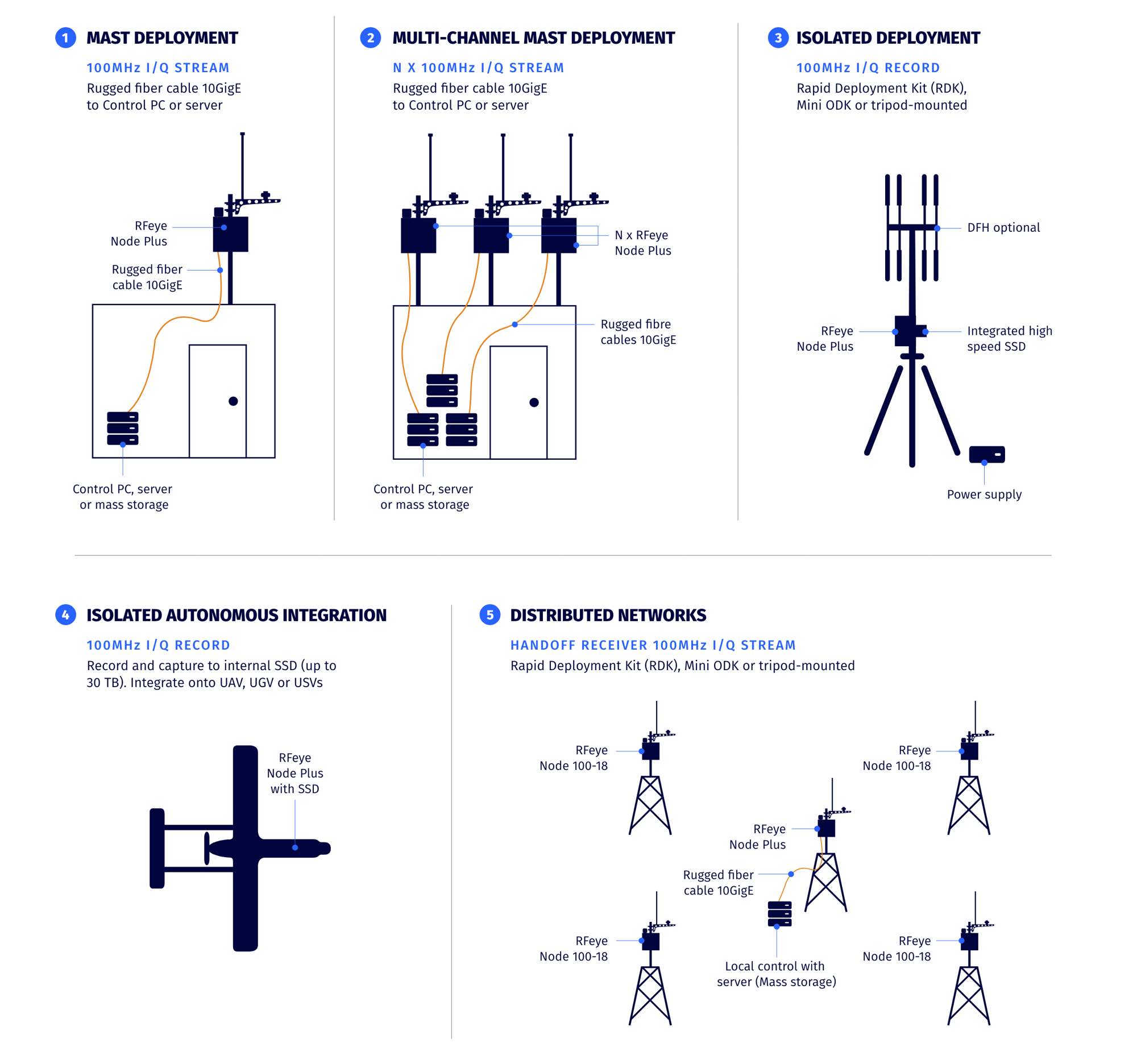

Five use case examples
RFeye Node Plus 100-18 at a glance
Intelligent RF sensor
Networked for multiple
users & missions
Superior RF performance
Small, light, fast
Advanced signal intercept, detection & POI
100 MHz IBW wideband frequency monitoring
RF recording (I/Q capture) at full 100 MHz
Ruggedized protection
from water or dust
%20CTA%20cover.png)
Brochure
RFeye Node Overview
Discover our advanced superheterodyne RF technology for superior sensitivity, frequency stability, and selectivity. Compare Node specifications, view the new RFeye Node models, and discover what makes them unique.

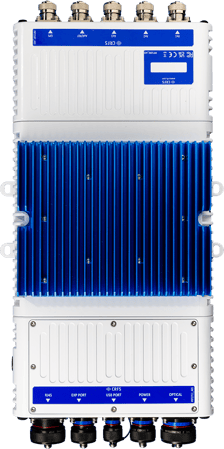

IP67 rated
The RFeye Node Plus 100-18 comes with updated IP67-rated connector noses to support fast SSD storage and I/Q data handling. All RFeye Nodes are designed for outdoor deployment in extreme environments and operate between -30°C – +50°C. The MIL-spec I/O connectors, weatherproof RF connectors, and sealing gaskets provide IP67-rated ingress protection.
CRFS expertise
Principles of
geolocation
techniques
This white paper describes the underlying principles of geolocation techniques (AoA, TDOA, FDOA, & PoA) and outlines their applications. Read the white paper
Passive geolocation
with 3D TDOA
Learn about the passive technique known as Time Difference of Arrival (TDOA), which uses the time difference between receipt of signals at spatially separated receivers to determine the location of the source.
Advanced geolocation capabilities
Learn about advanced geolocation capabilities, AoA, TDOA, PoA, multi geolocation, and much more.
Explore RFeye Nodes
Powerful, portable, and rugged RF sensors built for any environment that receive and record signals and geolocation of transmitters.
RFeye Node 100-18-LW
High-performance RF sensor for autonomous system integration. An ideal EW / ISR sensor payload enabling real-time spectrum monitoring and I/Q data collection to 18 GHz.

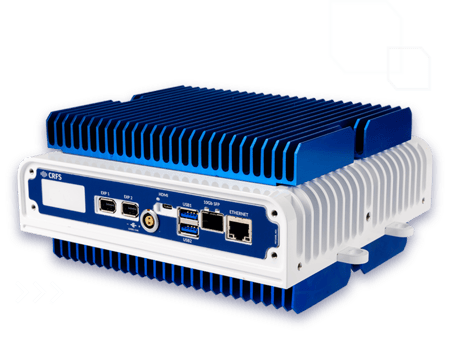

RFeye Node Plus 100-18
Portable, rugged, exceptionally fast RF sensor with full 100 MHz I/Q recording and streaming for enhanced detection, POI and signal intelligence.
RFeye Node 40-8
A wideband RF receiver to ensure you never miss a signal. The RFeye Node 40-8 provides the latest superheterodyne receiver technology to provide outstanding quality and performance at a highly competitive price.
RFeye Node 100-8
Wideband RF receiver to ensure you never miss a signal. The RFeye Node 100-8 is a complete spectrum monitoring and geolocation system designed for remote deployment in distributed networks, including in hostile environments.
