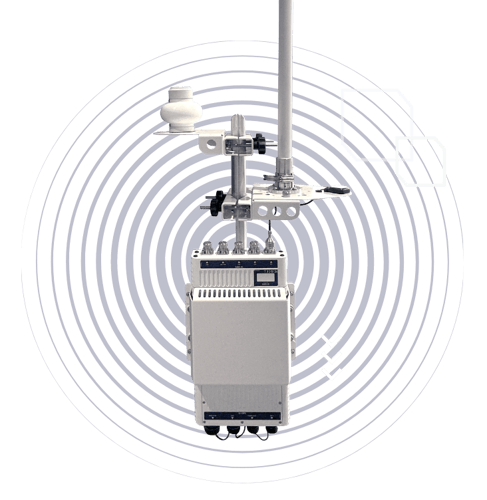

RFeye Mini Outdoor Kit

A lightweight deployment for
RFeye Nodes in harsh environments

Small, compact & flexible enclosures for RFeye Nodes

The RFeye Mini Outdoor Kit ODK system offers a range of flexible mounting kits for attaching RFeye Nodes to outdoor structures such as masts and building structures. The Outdoor Kits are designed to resist build-up of ice and snow in cold climates, and incorporate a sunshield to minimise solar loading in hot climates. Kits are available in olive drab, light tan and white colour options.

COTS system
Lightweight
Permanent or temporary installation
Compact & flexible

RFeye Outdoor System Kit benefits

Resistant to
snow and sun

Ruggedized equipment for water or dust ingress protection

Fast & simple to
deploy & redeploy

A full range of flexible mounting kits

Easy setup.
No tools required

Includes multiple RF antennas as well as a GPS receiver

What’s in the kit?

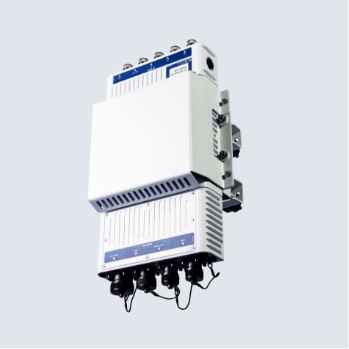

RFeye Node with sunshield

High-band antenna (8GHz and 18GHz options available)

Low-band antenna (10MHz to 1GHz)

GPS antenna

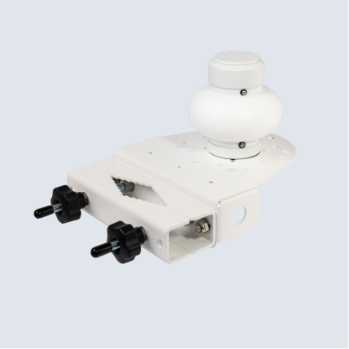

2x Antenna brackets with pole clamps

Outdoor POnE in metal box

Indoor POnE

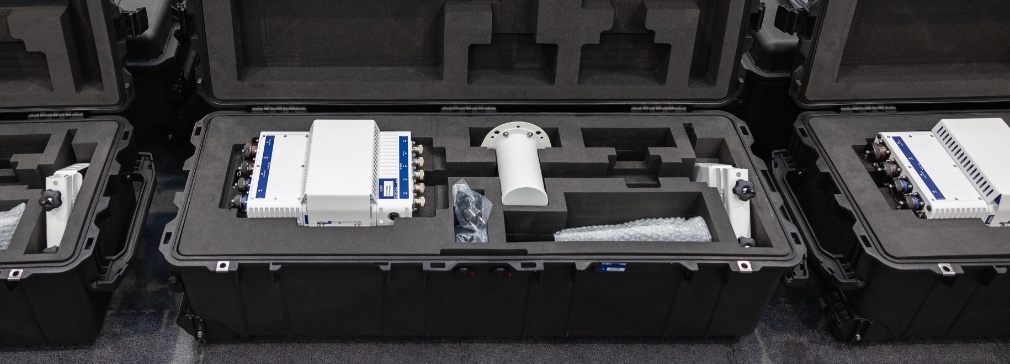

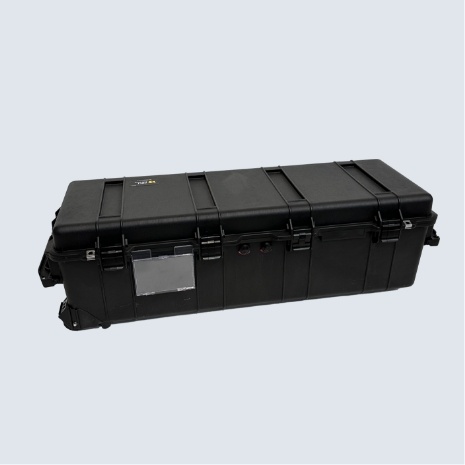

Ruggedized protective transport casing (optional)

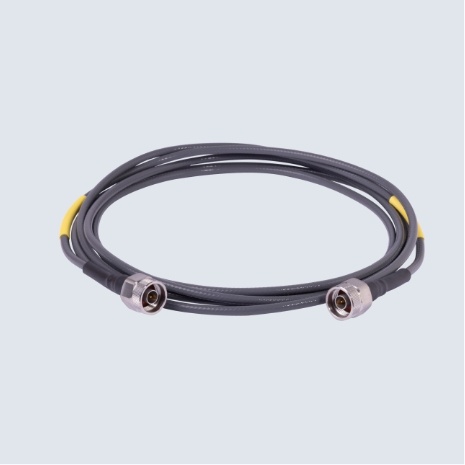

RF cable (N-type to N-type)

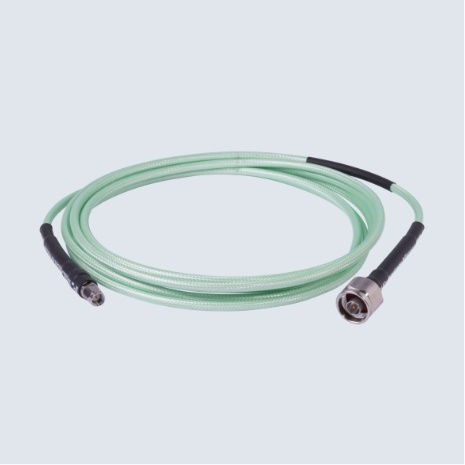

RF cable (SMA to N-type)

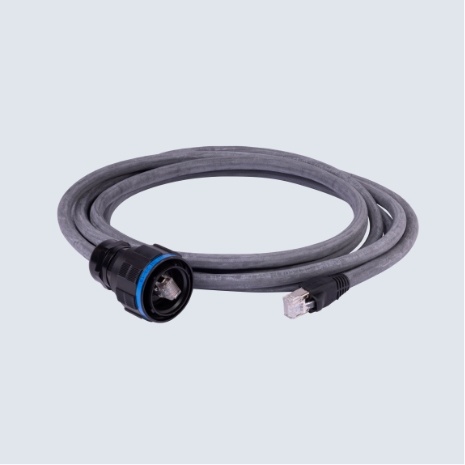

Cat5e cable for POnE / Ethernet

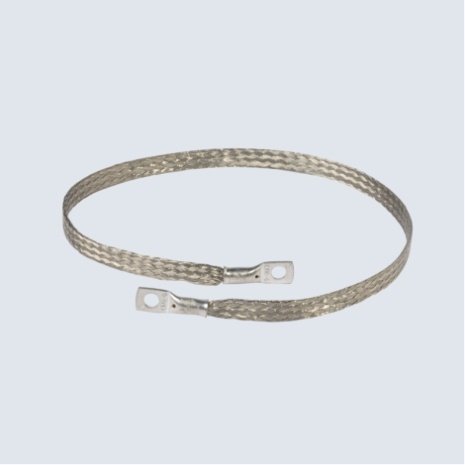

Braided earth strap

ODK comparison	Standard outdoor kit	Mini outdoor kit
ODU (mounting enclosure) size	415 x 400 x 260mm / 16.3 x 15.75 x 10.24in	220 x 120 x 415mm / 8.66 x 4.72 x 16.3in
ODU (mounting enclosure) weight	28 kg (61.7 lbs)	10 kg (22.1 lbs)
Power supply (DC)	12V DC (max limit 30V DC) Optional	12V DC (max limit 30V DC) Optional
Power supply (POnE)	POnE 56V	POnE 56V
Environmental ingress protection	IP66	IP67
Omni antenna mounts	2 (up to 4 optional)	2 (up to 4 optional)
GPS antenna mounts	1	1
Rugged carry case	-	Optional
RFeye Node	RFeye Node 40-8, 100-8, 100-18 or 100-40 options	RFeye Node 40-8, 100-8, 100-18 or 100-40 options

Talk to an advisor to discuss the mini outdoor system kit

Talk to us

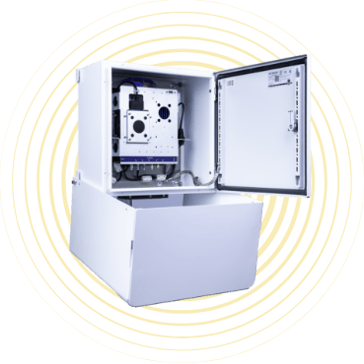

Need more equipment space?

The Standard ODK is larger, and provides space for additional equipment where necessary.
