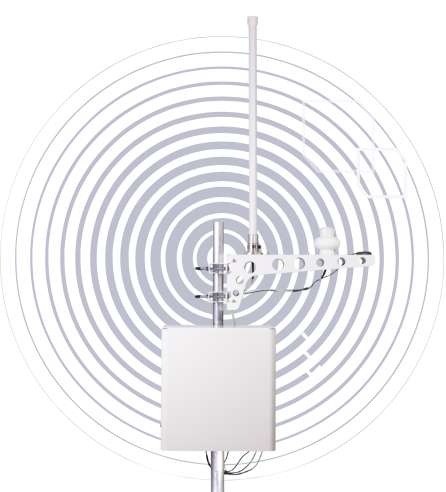

RFeye Standard Outdoor Kit

Ruggedized enclosure for RFeye Nodes working in harsh environments

Flexible, ruggedized enclosures for high-performance radio receivers

The RFeye Outdoor Kit (ODK) offers a range of flexible mounting kits for attaching RFeye Nodes to outdoor structures such as masts and buildings. The ODK is designed to resist build-up of ice and snow in cold climates, and incorporates a sunshield to minimize solar loading in hot climates. The Standard ODK provides valuable space for additional equipment where necessary, compared with its smaller variant, the Mini ODK.

COTS system
Single cable to installation
Secure mounting
Compact & flexible

RFeye Outdoor System Kit benefits

Resistant to
snow and sun

Ruggedized equipment for water or dust ingress protection

Fast & simple to
deploy & redeploy

A full range of flexible mounting kits

Easy setup.
No tools required

Includes multiple RF antennas as well as a GPS receiver

What’s in the kit?

Enclosure with pole clamps and solar shield

High-band antenna (8GHz and 18GHz options available)

Low-band antenna (10MHz to 1GHz)

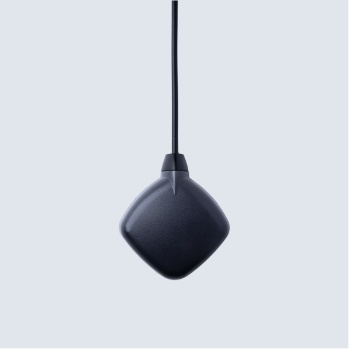

GPS antenna

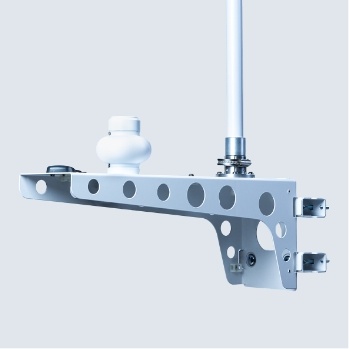

Antenna bracket with pole clamps

Outdoor POnE in metal box

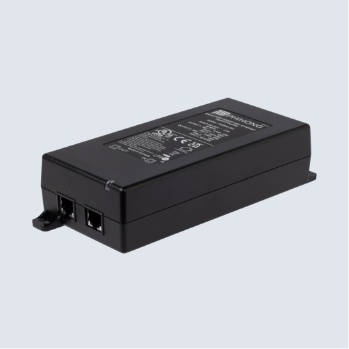

Indoor POnE

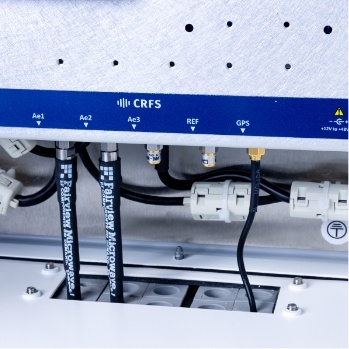

Cable entry gland

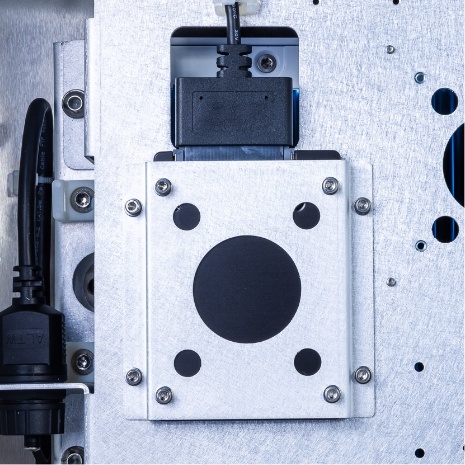

1 TB SSD Drive

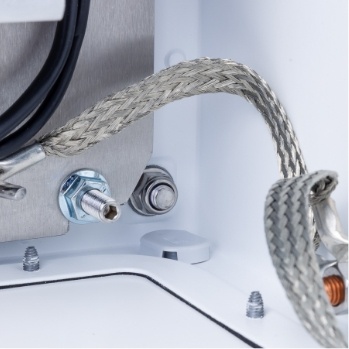

Condensation discharge

Pressure relief vent

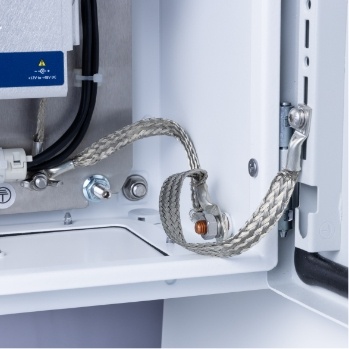

Braided earth strap

Outside details

Enclosure with pole clamps and solar shield
Antenna bracket with pole clamps
GPS antenna
Low Band omni antenna with 3 metre N-type to SMA RF cable
High Band omni antenna with 3 metre SMA to SMA RF cable

Inside details

Cable entry gland
Pressure relief vent
Condensation discharge
DC power input
Ethernet/PoE input
USB port
1 TB SSD Drive
Braided earth strap

Accessories included

Indoor POnE Power supply with country specific mains cable

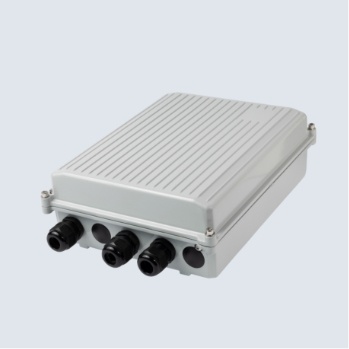

Outdoor POnE power supply
Field installable RJ45 connector
Field installable DC power connector

ODK comparison	Standard outdoor kit	Mini outdoor kit
ODU (mounting enclosure) size	415 x 400 x 260mm / 16.3 x 15.75 x 10.24in	220 x 120 x 415mm / 8.66 x 4.72 x 16.3in
ODU (mounting enclosure) weight	28 kg (61.7 lbs)	10 kg (22.1 lbs)
Power supply (DC)	12V DC (max limit 30V DC) Optional	12V DC (max limit 30V DC) Optional
Power supply (POnE)	POnE 56V	POnE 56V
Environmental ingress protection	IP66	IP67
Omni antenna mounts	2 (up to 4 optional)	2 (up to 4 optional)
GPS antenna mounts	1	1
Rugged carry case	-	Optional
RFeye Node	RFeye Node 40-8, 100-8, 100-18 or 100-40 options	RFeye Node 40-8, 100-8, 100-18 or 100-40 options

Talk to an advisor to discuss the outdoor system kit

Talk to us

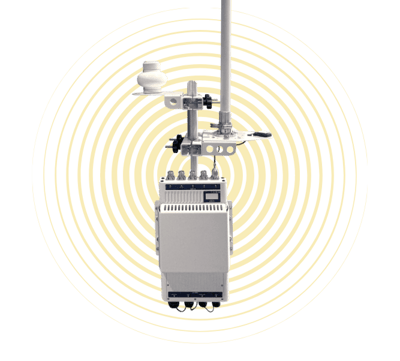

Need a lighter alternative?

The Mini ODK is a small, compact & flexible enclosures for RFeye Nodes.

Find out more
