RFeye Stormcase

Plug-and-play, portable intelligent RF receiver

Easy mobile spectrum monitoring
Simple deployment
Fully autonomous
Ruggedized stand-alone unit

Talk to us

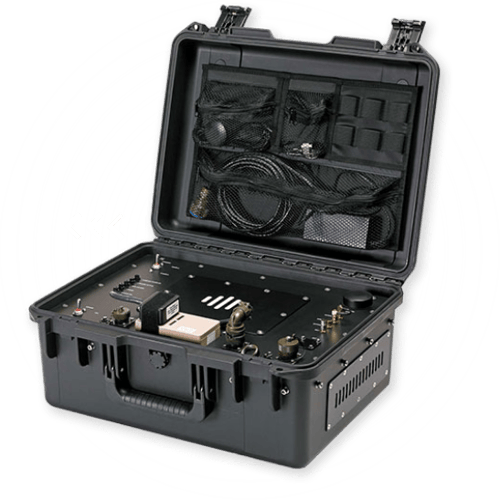

The RFeye Stormcase is a portable integrated system designed for easy mobile spectrum monitoring from a fully autonomous and ruggedized unit.

Up to 40 GHz

Rugged RF receiver with a 100MHz instantaneous bandwidth and 9 kHz to 40 GHz frequency range

Go anywhere

The RFeye Stormcase is suitable for a wide range of field deployable applications, where rugged form factor, portability and high signal fidelity are essential.

Autonomous

The RFeye Stormcase is designed for vehicle-mounted, transportable or ground-fixed installations. It can be quickly deployed and redeployed.

Talk to an advisor to discuss RFeye Stormcase

Talk to us

Simple deployment

Key to the RFeye Stormcase is its ability to run in a ‘headless’ mode. This ‘headless’ operation allows signal experts to configure missions in advance either directly connected to the unit or remotely. Deployment operatives simply switch the unit to ENABLE to set the mission running. For security, this switch features a trigger guard to prevent accidental operation or cancellation

Autonomous spectrum surveillance

Embedded data logging software applications are typically pre-programmed with the required measurement profile prior to deployment, allowing autonomous spectrum surveillance and surveying operations to be performed by non-technical personnel where necessary. Data is visualized and analyzed post-survey using RFeye application software. In addition, any mobile computing device with a web browser can be connected for real-time monitoring of signals during the survey using embedded RFeye Web Apps software

Mobile spectrum monitoring & surveillance

Connectivity

Networking options

The RFeye Stormcase can be networked along with other nodes and managed remotely allowing for remote operation by an expert and to provide real time data from any part of an operational area. The backhaul can be wired or delivered via a wireless network. Battery systems can be provided that are hot swappable. The unit can also be controlled directly through a laptop to respond quickly to any changes in monitoring plans

Data rate

When you need live intelligence, it’s often only possible via temporary/pop-up networks, so keeping network requirements to a minimum becomes critical. Data throughput from RFeye stormcase to remote operators is extremely light weight as the heavy analysis happens in real-time on the unit. Typically, data throughput even with live spectrum graphs will be between 400Kb/s and 1Mb/s depending upon the task at hand.

Antenna options

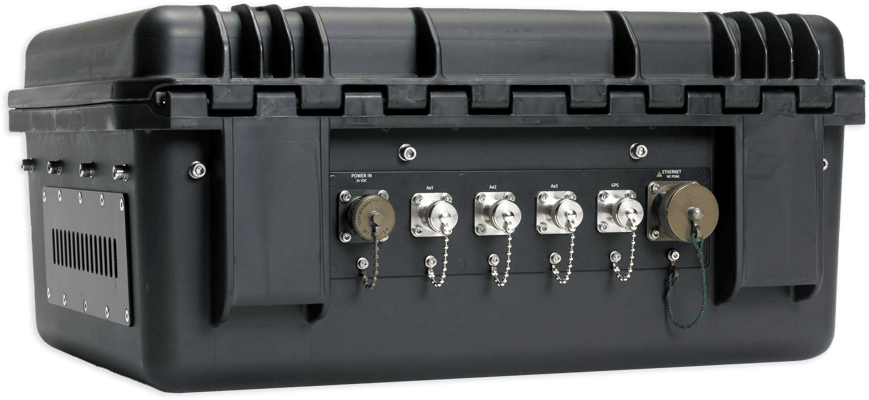

RFeye Stormcase provides 3 antenna ports for use across wide frequency ranges. Presented via IP67 weatherproof connections, each antenna may be specific to your particular application. Dust caps make sure your ports stay clean and dry while fixed chains prevent accidental loss.

Power

RFeye Stormcase comes with internal standard military Li-ion, hot-swappable batteries. External mains supply, battery or wind/solar all supported via weather-proof locking connector.

GPS

Internal or external GPS antennas are supported, as standard. A GPS antenna is built in. Standard RFeye Stormcase also supports GPS holdover allowing it to operate in GPS denied environments.

RFeye Stormcase 100-8 Datasheet

RFeye Stormcase 100-18 Datasheet

Talk to a member of our team

Discuss an RFeye Stormcase deployment with one of our experts.

Talk to us
