RFeye Array 100 series overview

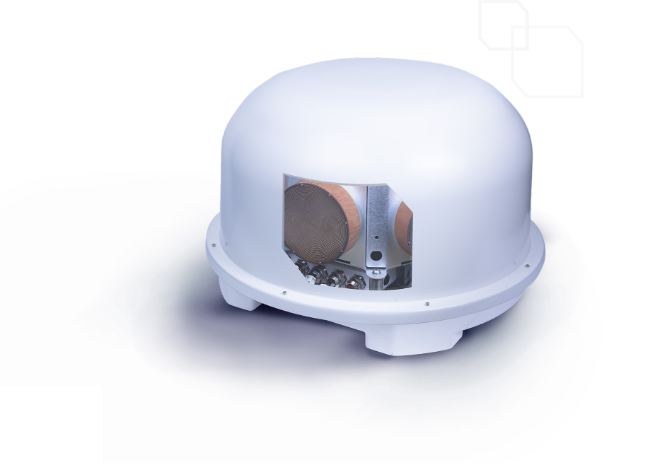

The Array 100 is a spectrum monitoring and direction-finding system for mobile or fixed deployment. It provides 100 MHz IBW and is available in two different receiver configurations, offering spectrum monitoring from 500 MHz to 8 or 18 GHz. This fully integrated multi-mission system has been optimized for size, weight, and power (SWaP) and can be mounted on a fixed or mobile application. The Array 100 is housed in a ruggedized radome and offers simultaneous DF, spectrum monitoring, and geolocation capability.
Each Array contains an RFeye Node, which is closely connected to the spiral antennas for maximum sensitivity. Commutating at very high speed around the antennas, the Node makes near-simultaneous AoA measurements in multiple directions. Data between multiple Arrays or between Arrays and Nodes can be correlated and synchronized for accurate geolocation of target signals using combined PoA, AoA, and TDoA techniques.
- Ruggedized protection from in harsh conditions
- Enhanced usability thanks to being optimized for SWaP
- Unique calibration file means no need for recalibration
- Data is processed on the Node, reducing backhaul and enabling remote control
- Unique antenna layout delivers maximum consistency and accuracy
- Offers stand alone AoA DF or simultaneous hybrid AoA / TDoA operation
RFeye Array at a glance
Unique multi-layer approach
DF antennas
All linear signal polarizations
Combined geolocation methodologies
100 MHz IBW wideband frequency monitoring
RF recording (I/Q capture)
Networked for multiple users & missions
Ruggedized protection from water or dust
