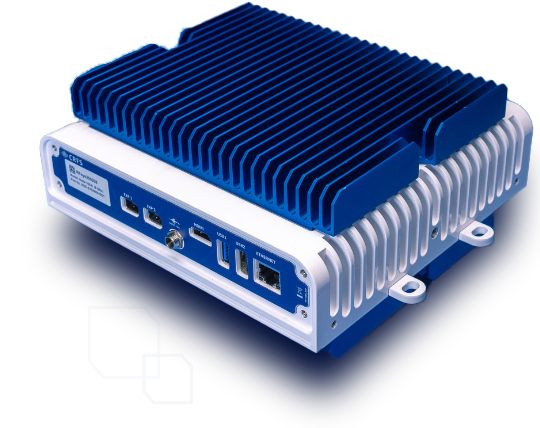

RF SENSOR RFEYE NODE
Portable and rugged high-performance RF sensor for real-time 24/7 spectrum monitoring and geolocation of transmitters

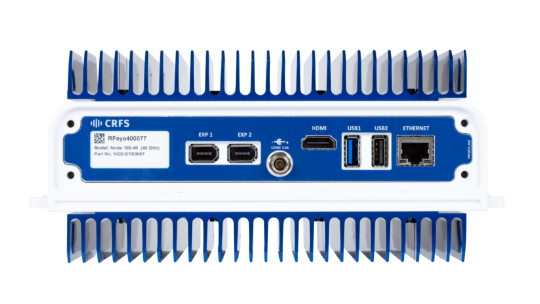

RFeye Node overview
Communication signals evolve as new demands, applications, and wireless standards emerge. The wider bandwidth, highly complex, and low power signal characteristics are more challenging to find, identify, and geolocate. RFeye Nodes are state-of-the-art superheterodyne receivers designed to support military and commercial applications without location, physical, or infrastructure constraints.
CRFS’ fourth-generation high-performance RF sensor has in-built edge processing that reduces the bandwidth of backhaul data. Excellent phase noise, low noise figure, and superb spurious free dynamic range coupled with FPGA technology and card design, enable easy integration and exploitation of the SDR and computer platform. Multiple users have multi-mission capability and can efficiently manage EMSO operations with a single Node—or seamlessly interact with a network of Nodes.
in_clouds.png?width=540&height=304&name=drone_flying)in_clouds.png)
- Trusted provider (military and commercial)
- 100 MHz IBW wideband frequency monitoring
- Compatible with GPS, BeiDou, GALILEO, and GLONASS
- Real-time continuous spectrum operations
- Finds low power signals
- Detects signals that have a low-probability-of-intercept
- Gateway to powerful software and APIs
- Flexible deployment – rugged indoor or outdoor RF sensors for fixed, temporary, or mobile platforms
RFeye sensors at a glance
Intelligent RF sensor
Networked for multiple
users & missions
Superior RF performance
Small, light, fast
Advanced signal intercept
100 MHz IBW wideband frequency monitoring
RF recording (I/Q capture)
Ruggedized protection from water or dust
BROCHURE
RFeye Node overview
Discover our advanced superheterodyne RF technology using the latest microwave components and technology for superior sensitivity, frequency stability, and selectivity. Compare Node specifications, view the new RFeye Node models, and discover what makes them unique.
IP67 rated
All RFeye Nodes are designed for outdoor deployment in extreme environments and operate between -30oC – +550C. The MIL-spec I/O connectors, weatherproof RF connectors and sealing gaskets provide IP67-rated protection.
CRFS expertise
Key radio parameters for spectrum monitoring receivers
Radio receivers are essential for spectrum monitoring operations. Therefore, an understanding of receivers' key radio parameters and minimum recommended values allows spectrum managers to select the best radio receiver for their spectrum monitoring solution.
Spectrum monitoring & geolocation systems
Advanced geolocation capabilities
This white paper explores how to enhance standard geolocation techniques such as AoA (Angle of Arrival), TDoA (Time Difference of Arrival), and PoA (Power on Arrival) by using the advanced signal processing methods employed by RFeye software and hardware.

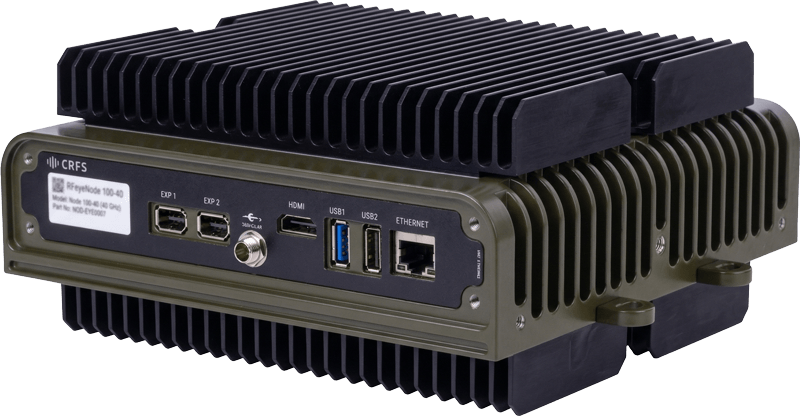

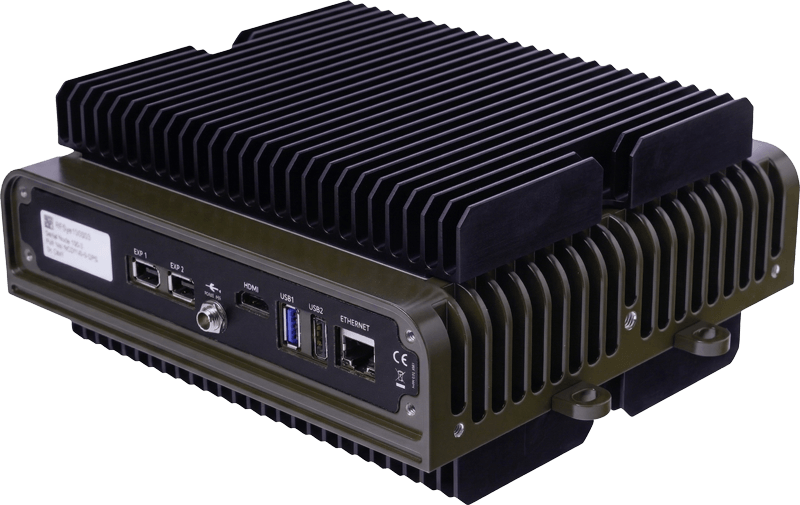

RFeye Nodes
Powerful, portable, and rugged RF sensors built for any environment that receive and record signals and geolocation of transmitters.

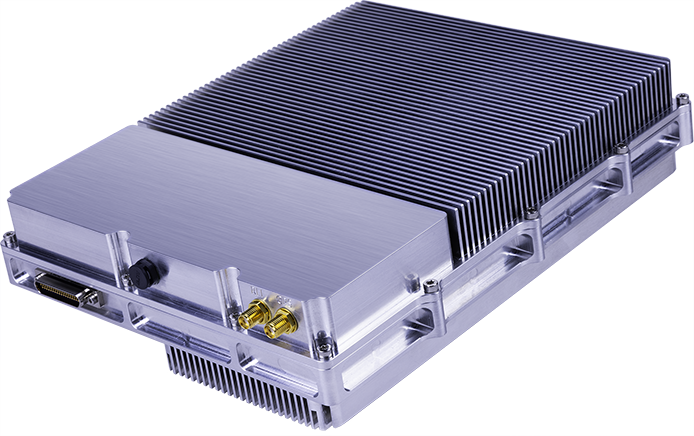

RFeye Node 100-18-LW
High-performance RF sensor for autonomous system integration. An ideal EW / ISR sensor payload enabling real-time spectrum monitoring and I/Q data collection to 18 GHz.

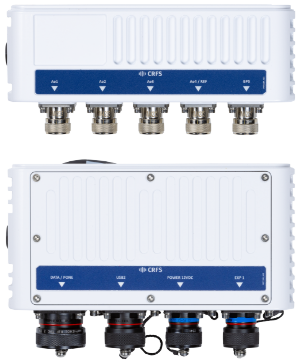

RFeye Node 40-8
A wideband RF receiver to ensure you never miss a signal. The RFeye Node 40-8 provides the latest superheterodyne receiver technology to provide outstanding quality and performance at a highly competitive price.
RFeye Node 100-8
Wideband RF receiver to ensure you never miss a signal. The RFeye Node 100-8 is a complete spectrum monitoring and geolocation system designed for remote deployment in distributed networks, including in hostile environments.

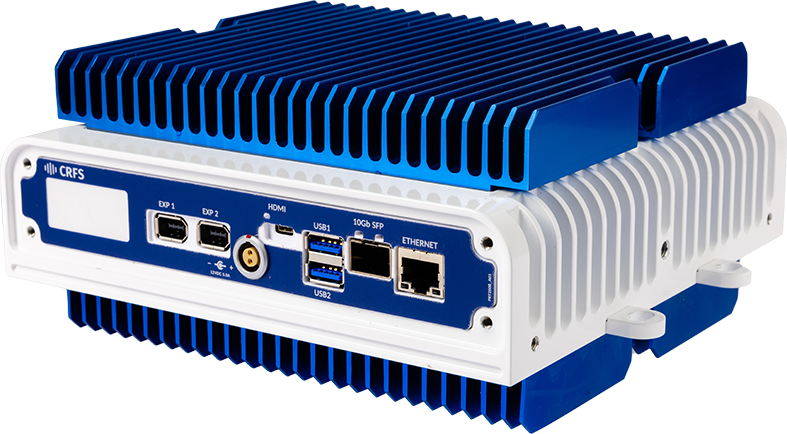

RFeye Node 100-18
The wideband RFeye Node 100-18 is a complete spectrum monitoring and geolocation system. Optimized for size, weight, and power (SWaP), it is simple to connect, power, and network.
